T-Guard Guarding Assembly (Patent Pending)
An engineered guardrail and stairwell protection system which utilizes a 14‑gauge load‑bearing steel stud welded to a 1/4” thick steel base plate, forming a rigid and dependable post assembly.
Each T‑Guard post is engineered to support horizontal guardrails installed at a maximum height of 42” above the floor in accordance with OSHA 1926.502 requirements. Full 14‑gauge steel handrail brackets provide support for horizontal handrails constructed from wood or steel studs (sold separately).

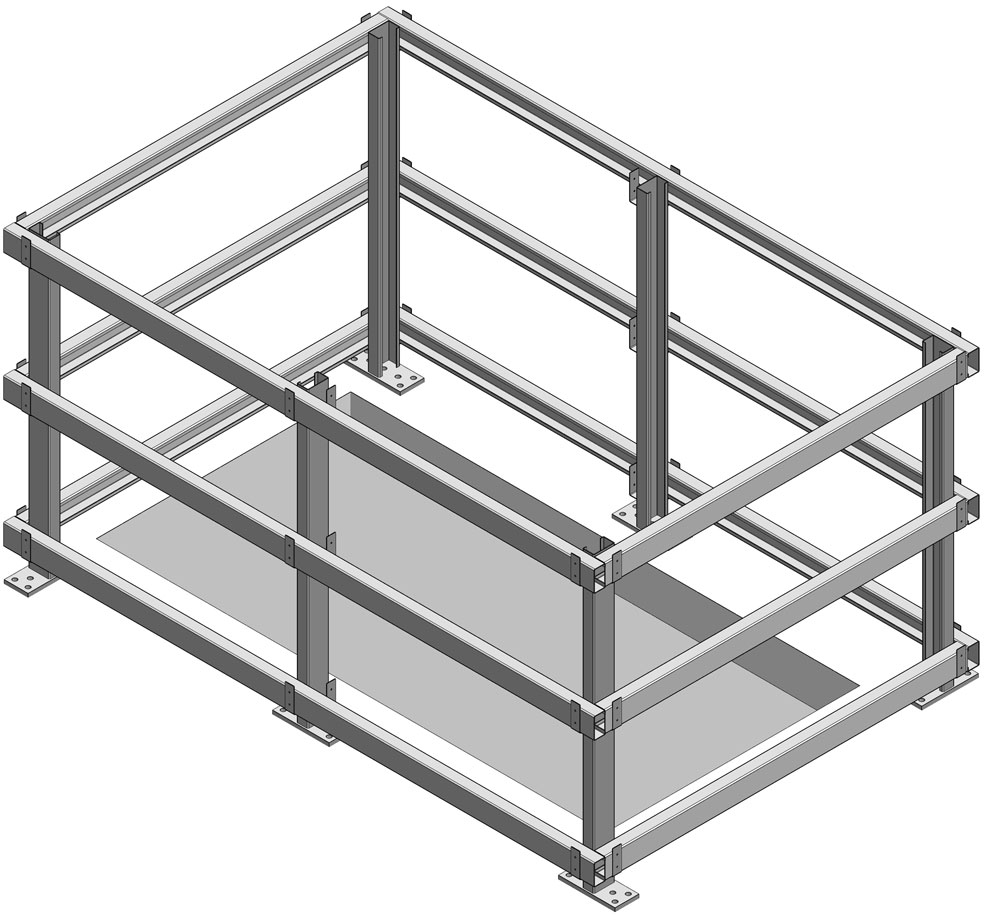

T-Guard components may be configured to create straight runs, corners, stair rail systems, mezzanine protection, and complex opening layouts.
Test standards:
• OSHA 1926.502 for Guardrail Systems
• OSHA 1926.1052 Stair rails and Handrails
• 3rd Party PE Certified to Meet OSHA Requirements
Benefits and Features
Benefits:
APPLICATIONS
• Construction Sites
• Warehouses
• Industrial Facilities
Architectural Technical Product Information
Arcat CAD resources
These resources include 2D and 3D CAD drawings, CAD models, and technical data sheets. The CAD resources are designed to provide users with accurate and detailed information about the True-Rule product.
Arcat BIM resources
BIM (Building Information Modeling) resources are include BIM files, 3D models, and technical data sheets, providing users with detailed information about the product.
