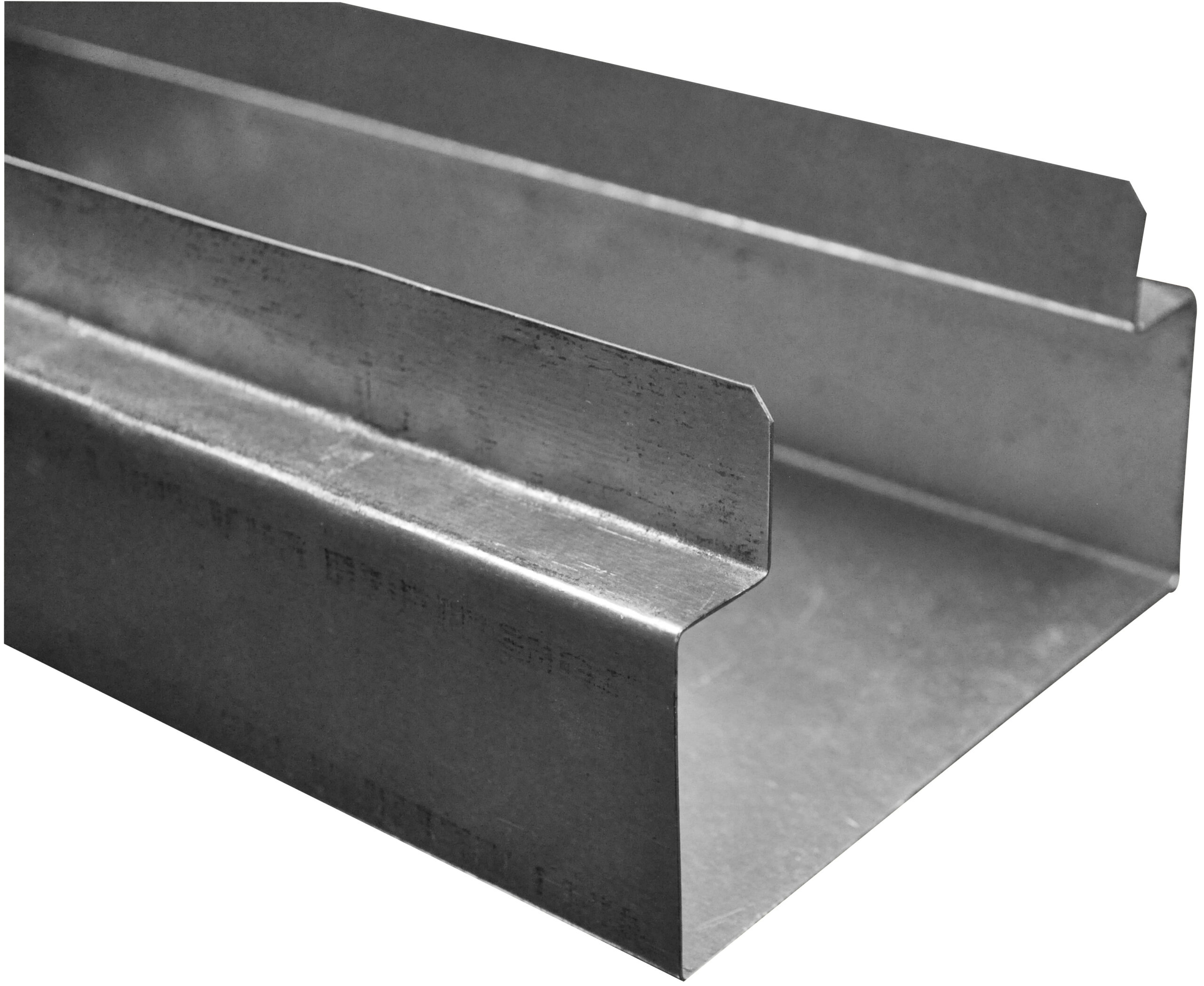

VersaDry Drywall
The VersaDry track comes in a non-rated track, and both one hour and two hour versions; both which have passed Fire resistance and acoustical testing according to ASTM E119 Specifications.
- Keeps Gypsum Dry
- Improved Fire Resistance
- Improved Acoustical Performance
- Elegant Final Fit and Finished Appearance
- Helps Reduce Mold Growth
Benefits and Features
Benefits:
- Keeps gypsum dry
- Improved fire resistance
- Improved acoustical performance
- Elegant final fit and finished appearance
- Helps reduce mold growth
Code Compliance
Fire Resistance:
3rd party tested to meet a 1 hour & 2 hour Fire Rating for UL Wall Design U423 per ASTM E119
- 1 hour Fire Rating for UL Wall Design U423 per ASTM E119 with 18mil Versadry Track, 1 layer of 5/8” Type X Gypsum, & 20ga 3-5/8” studs spaced 16”OC
- 2 hour Fire Rating for UL Wall Design U423 per ASTM E119 with 18mil Versadry Track, 2 layers of 5/8” Type X Gypsum, & 20ga 3-5/8” studs spaced 16”OC
Acoustical Performance:
3rd part tested per ASTM E90-09 and calculated per ASTM E413-16
- STC = 45 for Non-Fire Rated 18mil VersaDry Track w/ 1 layer of 5/8” Type X Gypsum
- STC = 48 for Non-Fire Rated 18mil VersaDry Track w/ 1 layer of Impact Resistant Gypsum
- STC = 46 for 1 hour Fire Rated 18mil VersaDry Track w/ 1 layer of Impact Resistant Gypsum
- STC = 53 for 2 hour Fire Rated 18mil VersaDry Track w/ 2 layers of 5/8” Type X Gypsum
Architectural Technical Product Information
Arcat CAD resources
These resources include 2D and 3D CAD drawings, CAD models, and technical data sheets. The CAD resources are designed to provide users with accurate and detailed information about the True-Rule product.
Arcat BIM resources
BIM (Building Information Modeling) resources are include BIM files, 3D models, and technical data sheets, providing users with detailed information about the product.
