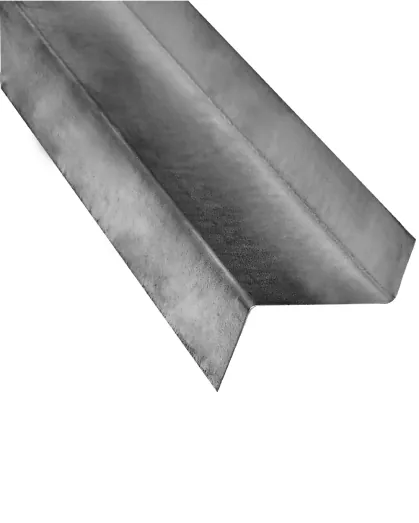

Z Furring Channel
Z shaped metal framing used to level uneven wall and ceiling surfaces for the attachment of gypsum and flat wall board materials.
- Available in 1.0”, 1.5”, 2.0” heights
- Standard gauges are 25ga and 20ga with 18ga and 16ga available upon request
- Standard 10’ lengths
- Custom lengths and some geometries available
| Product | (A) in. Size | 25 Ga. Wt./Ft. |
|---|---|---|
| Z-100 | 1.00 | 0.195 |
| Z-150 | 1.50 | 0.225 |
| Z-200 | 2.00 | 0.260 |
Code Compliance
- AISI North American Specification [NASPEC] S100-07 with 2010 supplement.
- IBC 2006, 2009 & 2012 Compliant
- Member of the Steel Framing Industry Association
Architectural Technical Product Information
Arcat CAD resources
These resources include 2D and 3D CAD drawings, CAD models, and technical data sheets. The CAD resources are designed to provide users with accurate and detailed information about the True-Rule product.
Arcat BIM resources
BIM (Building Information Modeling) resources are include BIM files, 3D models, and technical data sheets, providing users with detailed information about the product.
